SKU:82114693

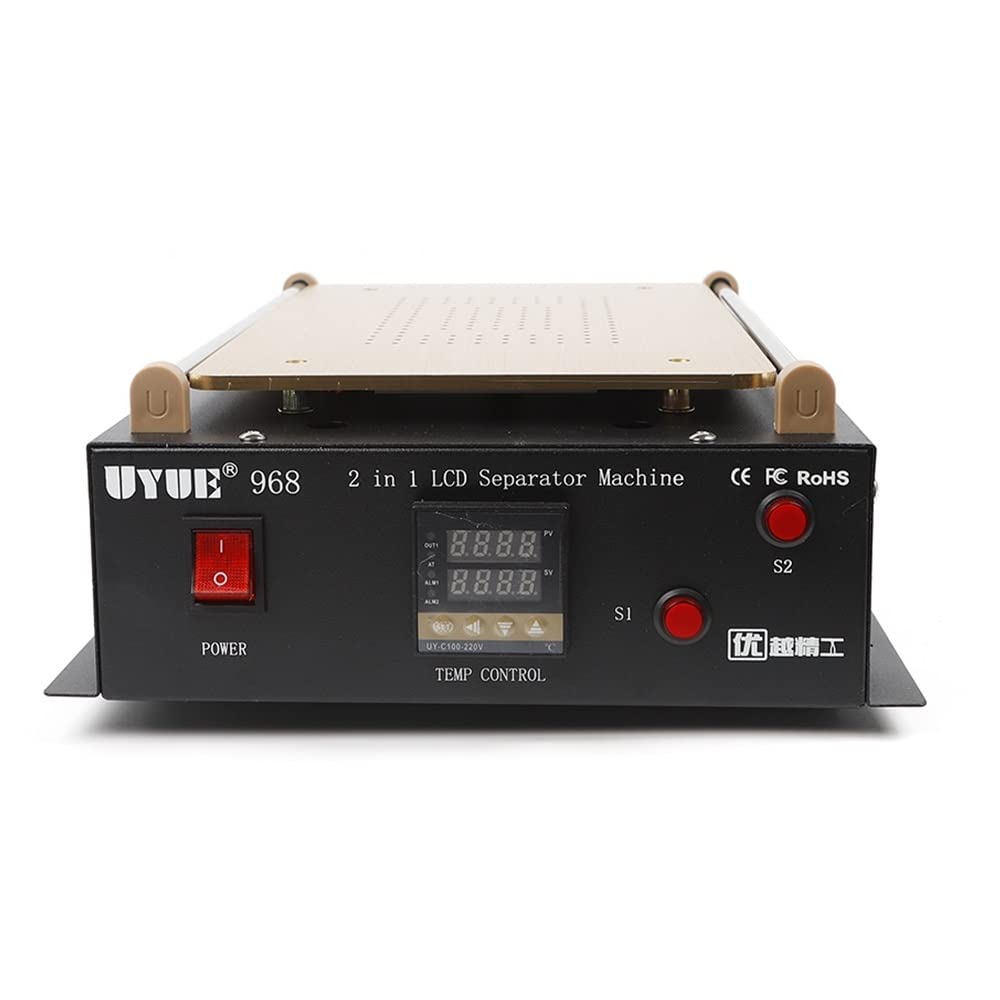

Specifications:Main Material: MetalPower: 600wInput: 110V-250V 50/60HZHeating area: 295x190mm/11.61x7.48inMachine size: 360x280x115mm/14.17x11.02x4.52inFeatures:1. Auto heating metal plate, maximum temperature is 400 centigrade.2. Safety power system inside, avoiding the electric leakage problem3. Static resistant body material, prevent the LCD and the flex cable being damaged from the static4. Easy installation5. Silicon mat to stick the touch screen without any damaged6. Temperature should be set to 80 centigrade to 100 centigrade, when you do the job on iPhoneandgalaxy series7. 2 bearings to last long the life of the wire you use to separate, and prevent your hands be hurt by the high temperature platform8. Compatible for LCD or LED screen assemblyApplication:Step 1: Put rubber mat on heating plate.Step 2: Turn vacuum button (s1/ s2) on, put LCD screen on rubber mat and fix tightly.Step 3: Turn on the machine and wait for the metal plate become 80-100 degree.Step 4: Start to separate the LCD off the glass with cutting wire, then right and left movement with wire between the LCD and the glass, please notice that you must using gentle power and keep wire stay on the LCD surface, so that it will avoid the damage of touch screen.Step 5: Finally you have finished the separating work, and do a good job. Note:Do not produce the heat more than 110 degree when operating; otherwise the high temperature may destroy the phone accessories
PRODUCT PARAMETERS -- Main Material: Metal; Power: 600w; Input: 110V-250V 50/60HZ; Heating area: 295x190mm/11.61x7.48in; Machine size: 360x280x115mm/14.17x11.02x4.52in.
FAST HEATING & BUILT-IN PUMP -- Auto heating metal plate, maximum temperature is 400 centigrade, high thermal efficiency, heat aggregation holes, temperature uniformity.
COMPATIBILITY -- Separate LCD front glass screen Built-in vacuum pump Manual LCD separator Suitable for 14 inch or below phone or tablet PC.
AUTOMATIC SEPARATION -- Separate the broken glass from LCD and if LCD is still working well, you only need to replace a glass screen, but no need to replace a full assembly screen.
SPACE-SAVING -- Compact size won't take up too much space, cooperated with the hot air gun, dismantle the chip safe and efficient.
