SKU:17323228

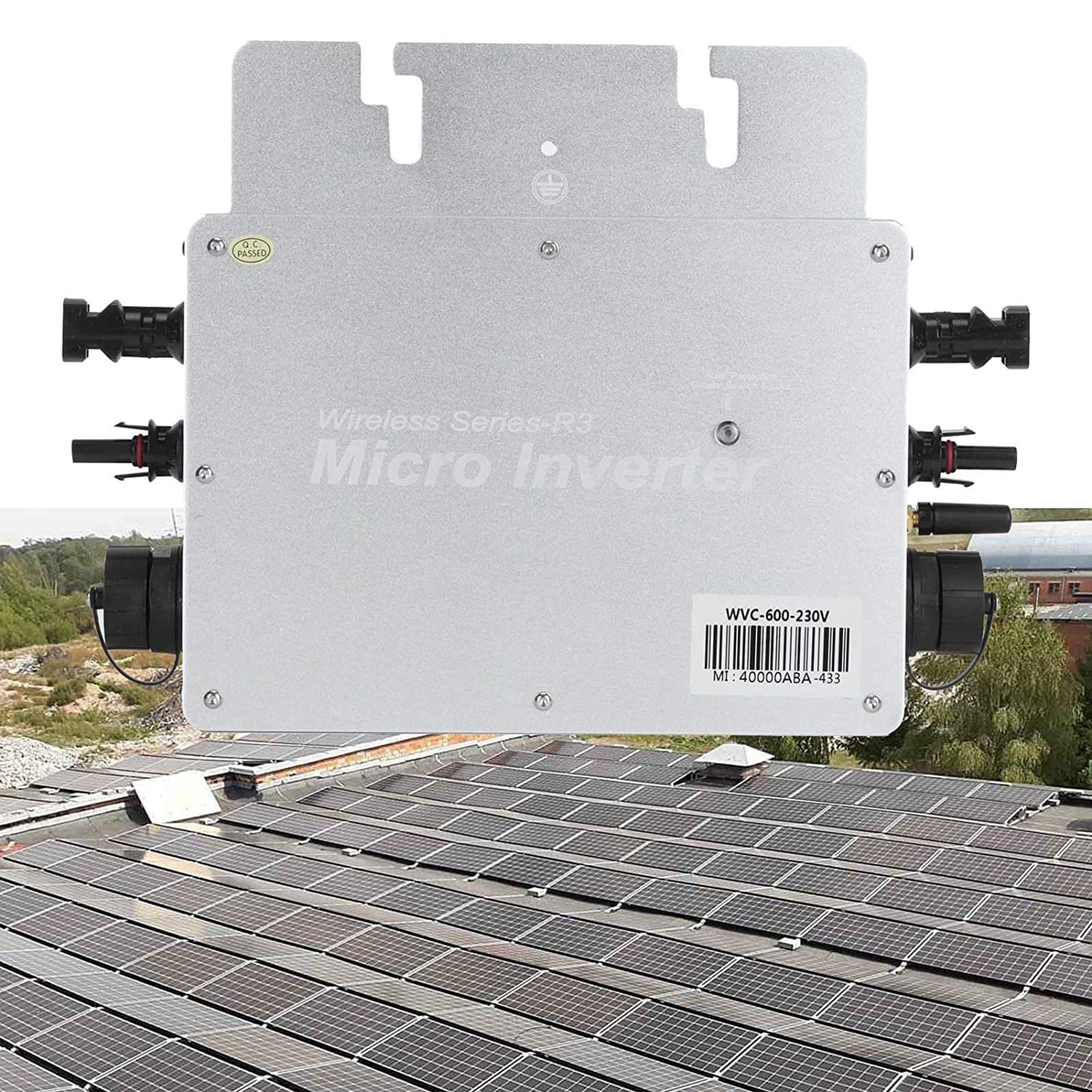

★ Features:1. WVC-600 micro-inverter, input and output are fully isolated, safe to be powered.2. High speed maximum power point tracking (MPPT), reverse power transmission.3. Supports multiple parallel stacks, global self-adjustment of voltage and frequency.4. High-precision voltage induction micro-grid mode, built-in electricity meter, easy to install.5. 5G Web of Things platform data management, support phone APP monitoring system.6. Forward full-bridge topology high-frequency modulation network mode, stable and reliable.★ Specification:Item Type: Micro InverterMaterial: aluminum alloy + electronic componentsModel: WVC-600Applicable scenarios: solar power generation system (roof, outdoor)Product use: solar power generation equipmentWeight: Approx. 2295gProduct Size: Approx. 20.1 x 21.2 x 3.9 cm / 7.9 x 8.3 x 1.5 inchOutput Voltage Mode Auto Switching Solar Panel Open Circuit Voltage Range 30-60VOC Current Tracking Voltage 22-60V Min/Max Starting Voltage 22-60V Max DC Short Circuit Current 30A Max Input Working Current 24A Output Parameters at 120V at 230V Output Power 600W 600W Rated Power 580W 580W Rated Output Current 5A 2.6-160.80 Rated Voltage Range 80 VAC 180-280 VAC Rated frequency range 48-51Hz/58-61Hz 48-51Hz/58-61Hz Power factor > 95% > 95% Number of connected units per string 6 sets (single phase) 12 sets (single phase) Output efficiency at 120V at 230V Static MPPT efficiency 99.50% 99.50% Maximum output efficiency 95% 95% power failure at night
WVC-600 micro inverter, input and output are fully isolated, safe to be powered.
5G Web of Things platform data management, support phone APP monitoring system.
High-speed Maximum Power Point Tracking (MPPT), reverse power transmission.
Supports multiple parallel stacking, global voltage/frequency auto-tuning.
High accuracy voltage induction microgrid mode, built-in electricity meter, easy to install.
